Digital IGR Dehumidifier

Constant temperature and humidity unit is a device which can automatic control environments temperature and moisture together, and can fulfill the indoor temperature within ±1℃

Description

Constant temperature and humidity unit is a device which can automatic control environments temperature and moisture together, and can fulfill the indoor temperature within ±1℃, humidity within ±2%. This device with advance technology and designed with concept"highly active, energy conservation, environmental protection, healthy"to make high performance products for users, the reasonable design with compact structure, elegant appearance, lower noise, safe operation, wider control range of temperature and humidity.



Application area: Ideal air conditioning equipment for different environment like defense technology pharmaceutical, electronics, hospitals, banking, printing, computer room, supply and distribution stations, shopping malls, hotels, laboratories and other precision components warehouse.

Work principle: constant temperature and humidity unit with a cooling, heating, dehumidification, humidification and ventilation complete temperature and humidity control adjustment function, which can adjust indoor temperature and humidity control in the vicinity of the set value, and with high ability of the control precision and control functions.



Device features: Unit mainly using imported brand components, so the unit is running high efficiency with long using life. The device use copeland flexible scroll compressor , Danfoss expansion valve, High Ai filters, Italy Ka Tusi solenoid valve, the Japanese official high and low dew protection. The unit uses PLC controller, with a high and low pressure protection, overload protection, phase protect-ion, phase sequence protection, and has a running fault display and alarm function, more safe and reliable operation of the unit.



Typical Function: temperature increasing and decreasing, cooling dehumidification, heating, dehumidification, constant temperature dehumidification and humidification.



Applying space

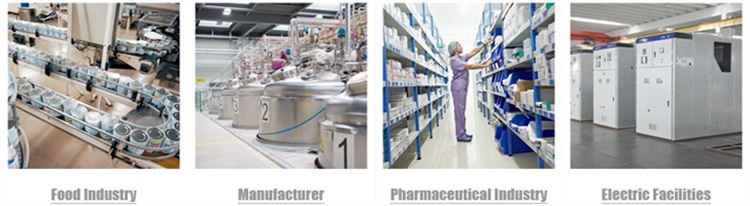

Constant humidity and temperature machine is widely used in the area which need both control the temperature and humidity, like food industry, manufacturer, pharmaceutical industry, electric facilities, warehouse etc.



1



Detailed Images

Big capacity



Digital IGR Dehumidifier

product-1-1



Model

KCCH-60

KCCH-120

KCCH-160

Certificate

CE Rosh ISO

CE Rosh ISO

CE Rosh ISO

Power Supply

110V 60HZ or 220V 60HZ or 380V 60HZ or 480V 60HZ

Power Consumption

120/850

200/1300

1100/3200

Rated Current

0.5/3.7

0.9/5.7

4.8/14

Dehumidify Capacity

40-60

100-120

140-160

Humidify capacity

3 to 5

6 to 8

10 to 15

Control Type

Computer touch panel

Water supply method for humidifier

Automatic

Automatic

Automatic

Condensate water pipe diameter

16mm

16mm

16mm

Fan type

Centrifugal fan

Centrifugal fan

Centrifugal fan

Noise

50Db

55Db

55Db

Air Circulation (m³/h)

800/1200

1600/2000

2000/3000

Compressor brand

Panasonic

Panasonic

Panasonic

Refrigerant /Charge

R410a/460g

R410a/900

R410a/1.6kg

Cooling capacity BTU/HR

6667

10731

35000

Timer

0-24hours

0-24hours

0-24hours

Working Temp.

0-38℃

0-38℃

0-38℃

Recommend Room Size

20-60

50-120

150-200

Humidity seting range

10-90%

10-90%

10-90%

High Low pressure protection device

Yes

Yes

Yes

3 minutes delayed for protecting

Yes

Yes

Yes

Auto Defrost

Yes

Yes

Yes

Charging gas valve

Yes

Yes

Yes

Hot gas

Yes

Yes

Yes

Oil filter

Yes

Yes

Yes

Body Size(mm)

550*480*1600

650*480*1600

677*1000*1940

Package Size(mm)

600*530*1700

700*430*1700

723*1050*2000

Net Weight

95

125

238

Gross Weight

102

135

258

Packing

Wooden box

Wooden box

Wooden box

Loading Quantity(20`/40')

42/85

35/72

16/33
