Greenhouse Portable Industrial Dehumidifier
The desiccant wheel divided into two isolated areas 3/4 of dehumidification area and 1/4 of regeneration area. When the moist air comes into the processing area, the desiccant wheel absorb moisture and the air become dry, Processing fan will send the air to the room.
Description
Introduction:
As a manufacturer based in China, we bring to you our top-of-the-line product, the Greenhouse Portable Industrial Dehumidifier. Our innovative and efficient dehumidifier is a must-have for any indoor cultivation facility, including greenhouses and grow rooms. With its ability to remove excess moisture from the air, it prevents mold and mildew growth, while also reducing the risk of plant diseases. Our product is energy-efficient, user-friendly, and cost-effective, making it an ideal investment for merchants looking to improve the quality of their crops.
Features:
The Greenhouse Portable Industrial Dehumidifier is equipped with advanced features that ensure maximum performance and durability. Carrying a sleek design, it is easy to install, requires low maintenance, and is suitable for both small and large-scale cultivators. Following are some of its prominent features:
1. High Capacity:
Our dehumidifier comes with a high capacity, measured in liters per day, which varies depending on the model. This allows it to remove large quantities of moisture in a short time, creating an optimal environment for your plants.
2. Intelligent Control:
Our dehumidifier is equipped with intelligent control, which means it can monitor the humidity levels, adjust its settings accordingly, and turn off when the desired level is achieved. It also has a timer function that allows you to set a schedule for its operation.
3. Air Purification:
Our dehumidifier not only removes moisture from the air but also purifies it by filtering out impurities and odors. This ensures fresh and clean air, which is essential for plant growth.
4. Energy-Efficient:
Our dehumidifier is designed with energy efficiency in mind. It consumes less power, making it a cost-effective solution for your cultivation needs.
5. Durable Build:
Our dehumidifier is built with high-quality materials, making it durable and long-lasting. Its robust construction ensures it can withstand harsh environmental conditions and last for years.
Benefits:
Using our Greenhouse Portable Industrial Dehumidifier has many benefits, especially for cultivators who are serious about their crops. Following are some of the benefits:
1. Reduces Humidity:
Our dehumidifier removes excess moisture from the air, reducing the relative humidity levels. This prevents mold and mildew growth, which can be destructive to crops, causing significant financial loss to the cultivator.
2. Improves Crop Yield:
By maintaining the optimal temperature and humidity levels, our dehumidifier creates an environment conducive to plant growth, resulting in healthier plants with increased crop yield.
3. Prevents Diseases:
Excess humidity in the air can lead to plant diseases, such as root rot and powdery mildew. Our dehumidifier prevents such diseases by creating a dry and sterile environment for your plants.
4. Saves Energy:
Our dehumidifier is energy-efficient, consuming less power than other dehumidifiers in the market. It not only saves energy but also saves costs associated with energy bills.
5. Easy to Install:
Our dehumidifier is easy to install and requires minimal maintenance. You don't need any specialized skills or knowledge to install or operate the dehumidifier.
Conclusion:
In conclusion, our Greenhouse Portable Industrial Dehumidifier is an excellent investment for merchants looking to improve the quality of their crops. Its advanced features, along with its reliable performance and durability, make it a must-have for indoor cultivation facilities. Using our dehumidifier, you can maintain the optimal temperature and humidity levels for your plants, resulting in healthier crops and higher yield. So why wait? Contact us to get your Greenhouse Portable Industrial Dehumidifier today!
Principle

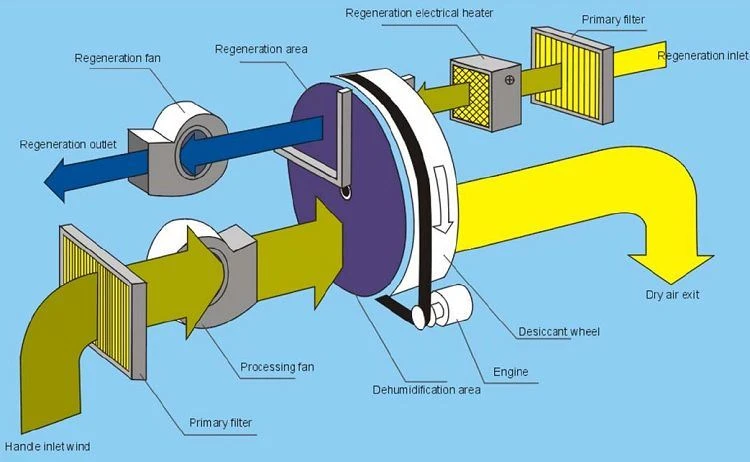

The desiccant wheel divided into two isolated areas 3/4 of dehumidification area and 1/4 of regeneration area. When the moist air comes into the processing area, the desiccant wheel absorb moisture and the air become dry, Processing fan will send the air to the room. Meanwhile the regeneration air (heating by electricity/steam/oil) sent to the regeneration area by processing fan in counter direction and desiccant wheel regenerating in the regeneration area. The moisture of the wheel removed in regeneration area and discharged to outside. The desiccant wheel of rotary dehumidifier turn 8 to 14 per hour to makes sure dehumidify and regeneration continues
As per the below picture showing working principle:
This temperature adjustable desiccant dehumidifier can control the humidity and temperature together.
Desiccant dehumidifier Applications
Due to the solidity desiccant wheel, this equipment can be used to dry the air under atmospheric pressure. It can continue working right down to -20°C, up to 50°C.
The dehumidification equipment is suitable for：
• Places full of corrosive gas
• HVAC system
• Humidity of less than 35%RH
• Low dew point conditions
• Low temperatures, especially combined with low humidity
• Single pass air flow applications
• Pharmaceutical production, packaging, storage, testing and research
• Process air systems
• Photographic/film archive stores
• Pneumatic conveying of powders
• Pumping stations
• Confectionary production and packing
• Food production
• Clean rooms
• Electronic manufacture
• Cold stores
• Seed storage
• Drying & corrosion prevention inside power station turbines
• Injection moulding machines
• Tank drying ...
|
Desiccant dehumidifier with Air conditioner |
|
||||||||||||||||
|
Parameter Model |
KCCD-1000 |
KCCD-1500 |
KCCD-2000 |
KCCD-25H |
KCCD-35H |
KCCD-40H |
KCCD-50H |
KCCD-60H |
KCCD-80H |
KCCD-10K |
KCCD-13K |
KCCD-15K |
KCCD-18K |
KCCD-25K |
KCCD-30K |
||
|
Process air volume Range |
m³/h |
1000-1200 |
1200-1700 |
1800-2300 |
2100-2700 |
3000-4000 |
4000-4500 |
5000-5500 |
5500-6500 |
7000-8000 |
8500-10000 |
11000-13000 |
13000-17000 |
13500-20000 |
20000-25000 |
30000-33000 |
|
|
Nominal process air volume |
m³/h |
1000 |
1500 |
2000 |
2500 |
3500 |
4000 |
5000 |
6000 |
8000 |
10000 |
13000 |
15000 |
18000 |
25000 |
30000 |
|
|
Nominal regeneration air volume |
m³/h |
340 |
500 |
660 |
850 |
1180 |
1350 |
1650 |
2000 |
2700 |
3400 |
4400 |
5000 |
6000 |
8400 |
10000 |
|
|
Nominal dehumidification capacity 28° RH60% |
9 |
12 |
15 |
18 |
25 |
30 |
41 |
47.8 |
64 |
81.6 |
95 |
120 |
140 |
200 |
245 |
||
|
Regeneration energy consumption |
Steam |
Kg/h |
14 |
24 |
30 |
36 |
42 |
50 |
60 |
70 |
110 |
140 |
180 |
200 |
240 |
330 |
400 |
|
0.4Mpa |
Pipe dia. |
DN20 |
DN20 |
DN20 |
DN20 |
DN20 |
DN20 |
DN20 |
DN20 |
DN20 |
DN25 |
DN25 |
DN25 |
DN25 |
DN32 |
DN32 |
|
|
ELec. |
kw |
8.4 |
14.4 |
18 |
22 |
28 |
30 |
36 |
42 |
66 |
84 |
108 |
120 |
150 |
200 |
240 |
|
|
Process Fan power |
kw |
1.1 |
1.1 |
1.5 |
2.2 |
3 |
4 |
4 |
5.5 |
7.5 |
7.5 |
11 |
15 |
17 |
22 |
22 |
|
|
Regeneration Fan power |
kw |
0.25 |
0.37 |
0.75 |
1.1 |
1.1 |
1.1 |
1.5 |
2.2 |
2.2 |
3 |
3.5 |
4 |
5.5 |
7.5 |
11 |
|
|
Drive Motor power |
kw |
0.06 |
0.06 |
0.06 |
0.09 |
0.09 |
0.12 |
0.12 |
0.12 |
0.12 |
0.18 |
0.18 |
0.25 |
0.25 |
0.25 |
0.25 |
|
|
Regeneration Installed Power |
Steam |
kw |
1.41 |
1.53 |
2.31 |
3.39 |
4.2 |
5.22 |
5.62 |
7.82 |
9.82 |
10.68 |
14.68 |
19.25 |
24.25 |
29.75 |
33.25 |
|
ELec. |
kw |
9.81 |
15.93 |
20.31 |
24.99 |
29.39 |
35.5 |
41.62 |
49.82 |
75.82 |
94.68 |
116.7 |
139.3 |
180.3 |
227.8 |
369.3 |
|
|
Chilled water reqd.（≤7℃） |
KW |
1.7 |
2.6 |
3.4 |
4.3 |
5.1 |
6.9 |
8.6 |
10.3 |
13.7 |
17.2 |
20.6 |
25.7 |
34.3 |
42.9 |
51.5 |
|
|
Cooling cap. |
KW |
10 |
15 |
20 |
25 |
29.9 |
39.9 |
49.9 |
59.9 |
79.9 |
99.8 |
119.8 |
149.7 |
199.6 |
249.6 |
299.5 |
|
|
Pipe Dia. |
mm |
DN20 |
DN20 |
DN20 |
DN32 |
DN50 |
DN50 |
DN50 |
DN50 |
DN50 |
DN65 |
DN65 |
DN80 |
DN80 |
DN100 |
DN100 |
|
|
Dimensions L*W*H |
mm |
5000*800*1800 |
5000*850*1850 |
5250*900*1900 |
5250*950*2000 |
5250*1030*2100 |
5250*1030*2100 |
5250*1180*2200 |
5700*1330*2400 |
5850*1430*2500 |
6000*1630*2650 |
6300*1730*2800 |
6300*1930*3000 |
6750*2180*3200 |
6750*2380*3400 |
7200*2460*3600 |
|
|
Approx weight |
Kg |
1200 |
1250 |
1300 |
1350 |
1400 |
1600 |
1800 |
2000 |
2200 |
2400 |
2600 |
2800 |
3000 |
3500 |
4000 |
|
|
Outlet wind parameters |
Temperature |
℃ |
22±3 |
||||||||||||||
|
RH |
RH% |
≤20 |
|||||||||||||||
|
Moisture content |
g/kg |
≤2.75 |
|||||||||||||||
Loading and packing:

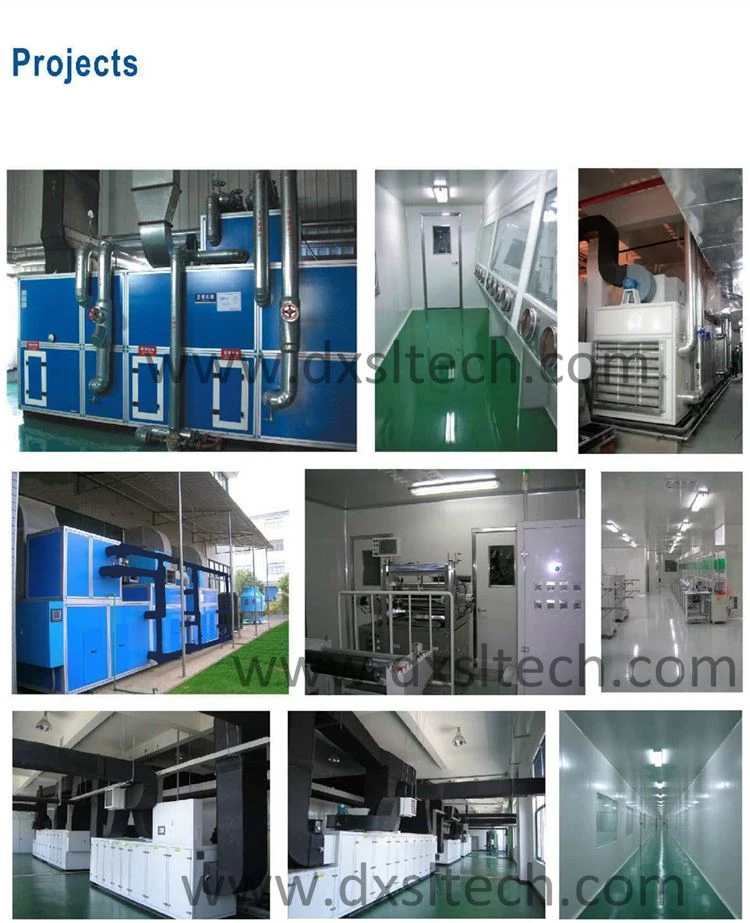

Successful Projects:
In 2014 Sochi Winter Olympics, HelloAir desiccant dehumidifier get the great honor, become their appointed humidity controlling device supplier. HelloAir desiccant dehumidifiers are widely used in kinds of skating halls and hockey halls.

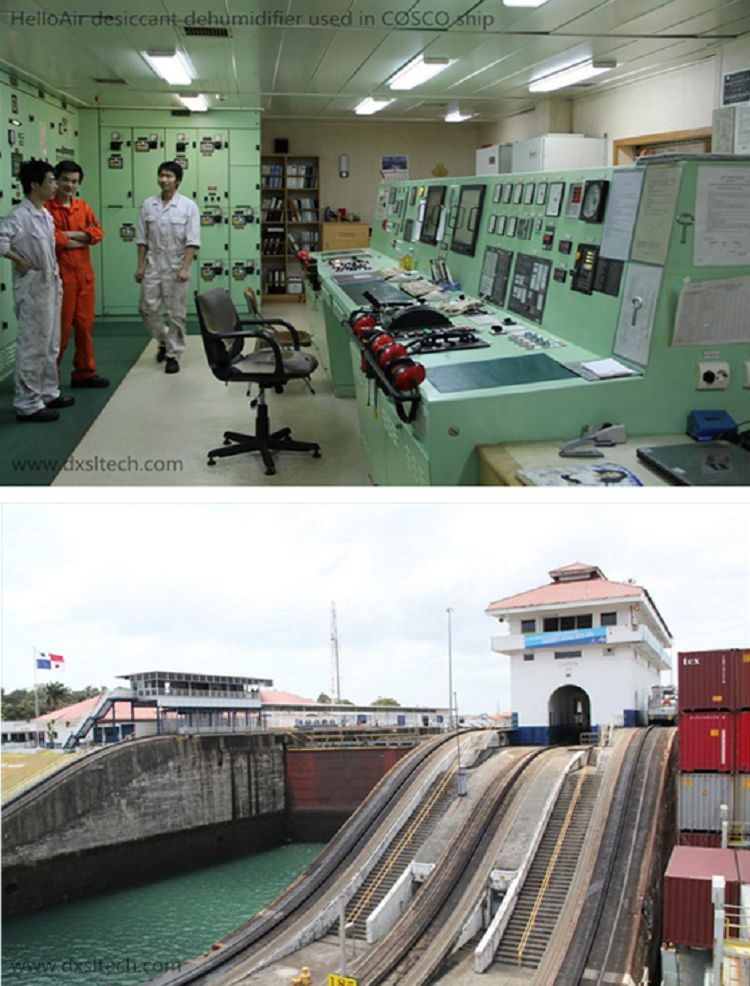

China Ocean Shipping (Group) Company is China's largest shipping company, one of the world's largest ocean shipping companies, HelloAir desiccant dehumidifier get the great honor become their appointed humidity controlling device supplier, HelloAir desiccant dehumidifier used in cockpit and Electric control room.
FAQ
Q1: Are you a trading company or manufacture ?
A: As one of the oldest manufactures of dehumidifiers and humidifiers, we are now taking the leading position of cooling industry in mainland China. We have 100 employees with more than 15 engineers and 4 production lines.
Q2: Do you accept OEM ?
A: Yes, we can accept OEM, and we have the professional designer to help you design your logo.
Q3: Do you accept ODM?
A: We welcome ODM, we have professional engineers team to help you with the design of the dehumidifiers and to provide you the professional suggestion with the dehumidifiers you want.
Q4: Can I buy a sample for testing?
A: Yes, we can supply you with a sample. for most of the models, we have them in stock. we can supply you with the sample within 2 days after we get your payment.
Q5: Can I visit your factory?
A: We warmly welcome you come to visit us at Fengxian District, Shanghai, China You can take the airplane to Shanghai, then take the fast train for 50 minute to Hangzhou railway station, we can pick you up at the railway station. If you fly to Shanghai directly, we can pick you up at the airport.
Q6: How Do I Know if I Need a Dehumidifier?
A: Have you heard the phrase, "it's not just the heat but the humidity that makes you uncomfortable?" This phrase describes the hot, muggy environment that results when there is excess humidity in your space. Although central ACs remove some excess moisture, it isn't enough for basements, crawl spaces and in damp areas of the country.You may have a humidity problem if you notice:
1.Mold
2.Musty scents
3.Condensation on windows
4.Wet stains on walls and ceilings
5.Uneven floor boards
6.Warm, clammy conditions
If these problems are ignored, structural damage to your home and its contents, allergic reactions, respiratory problems, and other health issues may arise.
Q7: What about the payment way?
A: T/T. L/C, Westernal union, E-checking, Mastercard, VISA. ect. LC at sight
Q8: What's the warranty item?
A: Warranty time normally is 24 months.
Q9: How to place orders on line?
A: Discuss product details ---- Negotiate ---- Trade assurance order---- confirm the order---- payment arrange --- Production---- Shipment by our forwarder--- Order finished---- follow shipment --- Notify the ETA ---- Clients clearance goods-after services.
