Granary rotary wheel Dehumidifiers

temperature controlling granary desiccant air drying dehumidifier with Self Defrosting with ISO approval certificate

Description

Due to the solidity desiccant wheel, this equipment can be used to dry the air under atmospheric pressure. It can continue working right down to -20°C, up to 50°C.

The dehumidification equipment is suitable for:

• Places full of corrosive gas

• HVAC system

• Humidity of less than 35%RH

• Low dew point conditions

• Low temperatures, especially combined with low humidity

• Single pass air flow applications

• Pharmaceutical production, packaging, storage, testing and research

• Process air systems

• Photographic/film archive stores

• Pneumatic conveying of powders

• Pumping stations

• Confectionary production and packing

• Food production

• Clean rooms

• Electronic manufacture

• Cold stores

• Seed storage

• Drying & corrosion prevention inside power station turbines

• Injection moulding machines

• Tank drying ...

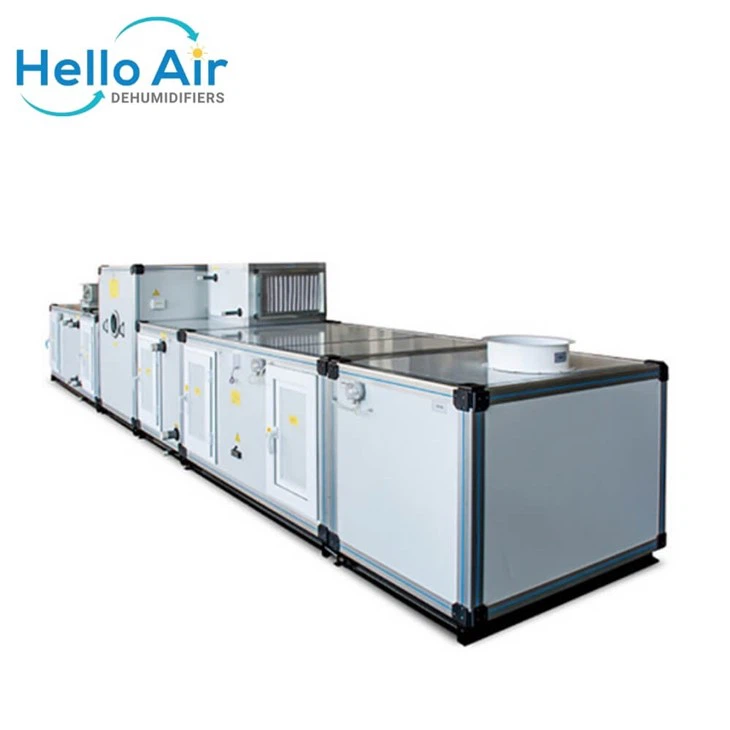

granary desiccant dehumidifier

Desiccant dehumidifier with Air conditioner

Parameter Model			KCCD-1000	KCCD-1500	KCCD-2000

Process air volume Range		m³/h	1000-1200	1200-1700	1800-2300
Nominal process air volume		m³/h	1000	1500	2000
Nominal regeneration air volume		m³/h	340	500	660
Nominal dehumidification capacity 28° RH60%			9	12	15
Regeneration energy consumption	Steam	Kg/h	14	24	30
	0.4Mpa	Pipe dia.	DN20	DN20	DN20
	ELec.	kw	8.4	14.4	18
Process Fan power		kw	1.1	1.1	1.5
Regeneration Fan power		kw	0.25	0.37	0.75
Drive Motor power		kw	0.06	0.06	0.06
Regeneration Installed Power	Steam	kw	1.41	1.53	2.31
	ELec.	kw	9.81	15.93	20.31
Chilled water reqd.(≤7℃)		KW	1.7	2.6	3.4
Cooling cap.		KW	10	15	20
Pipe Dia.		mm	DN20	DN20	DN20
Dimensions LWH		mm	50008001800	50008501850	52509001900
Approx weight		Kg	1200	1250	1300
Outlet wind parameters	Temperature	℃	22±3
	RH	RH%	≤20
	Moisture content	g/kg	≤2.75
